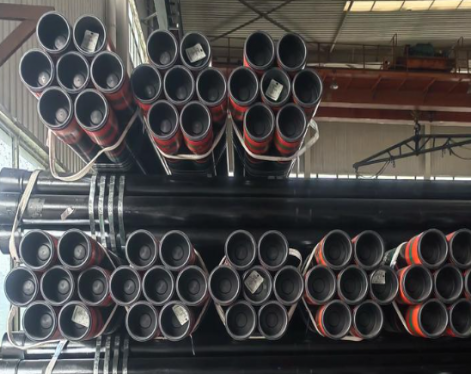

API 5CT J55 Casing and Tubing Specifications

In the realm of oil and natural gas extraction, API 5CT stands as a critical technical specification established by the American Petroleum Institute (API), specifically designed to define the standards for oil well casing and tubing. Within the API 5CT framework, Grade J55—a classic medium-strength carbon-manganese steel—has emerged as one of the most widely utilized tubular materials in shallow-to-medium depth oilfield operations worldwide, thanks to its exceptional cost-effectiveness and reliable downhole performance.

If you are involved in oil and gas well construction or tubular procurement, gaining a comprehensive understanding of the specifications and parameters for J55 casing is essential. This article provides a thorough analysis of Grade J55, examining it across four key dimensions: mechanical properties, chemical composition, dimensional tolerances, and application scenarios.


API 5CT J55

The American Petroleum Institute specification API 5CT J55 casing pipe is designed for applications in the oil and gas drilling industry. API 5CT J55 is a widely used petroleum casing material. It is manufactured in accordance with the API 5CT standard and applied in various well types, including both oil and natural gas wells. API 5CT J55 offers good yield strength and reliable fatigue resistance, making it a suitable option for demanding drilling environments such as petroleum exploration and production operations.


API 5CT J55 Mechanical Properties

The mechanical performance of J55 casing is defined under strict API testing requirements.
Key mechanical properties:
Yield Strength: 379 – 552 MPa
Tensile Strength: ≥ 517 MPa
Elongation: ≥ 19%
Hardness: Controlled within API limits
Impact Performance: Required under PSL standards

API 5CT J55 Casing Pipe Dimensions

J55 casing is available in a wide range of diameters and wall thicknesses depending on drilling design requirements.

Code a		Outer Diameter	Nominal Weight	Wall Thickness	End Processing Type
			(with thread and coupling) b, c
		mm	kg/m	mm	J55
Inch	Lb/ft				K55
1	2	3	4	5	7
9 5/8	32.3	244.48	48.07	7.92	–
9 5/8	36	244.48	53.57	8.94	SLB
9 5/8	40	244.48	59.53	10.03	SLB
9 5/8	43.5	244.48	64.73	11.05	–
9 5/8	47	244.48	69.94	11.99	–
9 5/8	53.5	244.48	79.62	13.84	–
9 5/8	58.4	244.48	86.91	15.11	–
10 3/4	32.75	273.05	48.74	7.09	–
10 3/4	40.5	273.05	60.27	8.89	SB
10 3/4	45.5	273.05	67.71	10.16	SB
10 3/4	51	273.05	75.9	11.43	SB
10 3/4	55.5	273.05	82.59	12.57	–
10 3/4	60.7	273.05	90.33	13.84	–
10 3/4	65.7	273.05	97.77	15.11	–
11 3/4	42	298.45	62.5	8.46	–
11 3/4	47	298.45	69.94	9.53	SB
11 3/4	54	298.45	80.36	11.05	SB
11 3/4	60	298.45	89.29	12.42	SB
13 3/8	48	339.72	71.43	8.38	–
13 3/8	54.5	339.72	81.1	9.65	SB
13 3/8	61	339.72	90.78	10.92	SB
13 3/8	68	339.72	101.19	12.19	SB
13 3/8	72	339.72	107.15	13.06	–
16	65	406.4	96.73	9.53	–
16	75	406.4	111.61	11.13	SB
16	84	406.4	125.01	12.57	SB
18 5/8	87.5	473.08	130.21	11.05	SB
20	94	508	139.89	11.13	SLB
20	106.5	508	158.49	12.7	SLB
20	133	508	197.93	16.13	SLB
S-Short round thread, L-Long round thread, B-Buttress thread
a. Code is used for ordering reference.
b. The nominal weight of threaded and coupled casing (column 2) is shown for reference only.

Applications of API 5CT J55 Casing Pipe

J55 casing is widely used in:
Oil and gas exploration (shallow wells)
Water well drilling
Geothermal energy projects
Geological drilling
Low-pressure reservoir development
Industry practice shows J55 is especially suitable for stable formations with minimal corrosive or high-pressure conditions.


Conclusion

API 5CT J55 casing pipe is a fundamental material in oil, gas, and water well drilling industries. With standardized mechanical properties, flexible dimensions, and cost advantages, it is ideal for shallow drilling and low-pressure formations.
