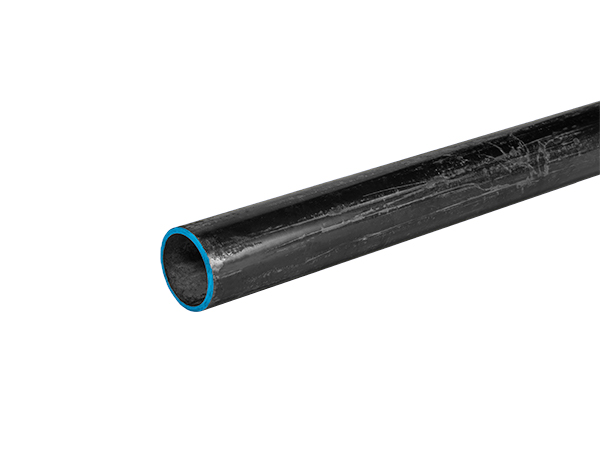

Schedule 40 Electric Resistance Welded (ERW) pipes are commonly used in a variety of applications including water supply, drainage, and gas distribution. These pipes are known for their durability, strength, and cost-effectiveness, making them a popular choice in the construction and industrial sectors. In this comprehensive guide, we will explore the characteristics, uses, manufacturing process, and advantages of Schedule 40 ERW pipes in detail.
1.Characteristics of Schedule 40 ERW Pipe
(1)Wall Thickness
Schedule 40 ERW tubes have a specified wall thickness, providing the necessary strength and durability for various applications. The thickness is standardized according to the pipe size to ensure uniformity and reliability.
(2)Material
These pipes are commonly made from carbon steel, which offers high tensile strength, and ease of fabrication. Other materials such as stainless steel or alloy steel may also be used based on specific requirements.
(3)Size Range
Schedule 40 ERW pipes are available in a wide range of sizes to accommodate different application needs. Common sizes include 1/2 inch, 3/4 inch, 1 inch, 2 inch, and larger diameters, allowing for versatility in various piping systems.
(4)Manufacturing Standards
ERW pipes are manufactured in accordance with industry standards such as ASTM A53 for carbon steel pipes, ensuring quality and performance consistency.
2.Uses of Schedule 40 ERW Pipe
(1)Water Distribution
Schedule 40 ERW pipes are widely used for water distribution in residential, commercial, and industrial settings due to their corrosion resistance and long-term reliability.
(2)Plumbing Systems
These pipes are commonly employed in plumbing systems for both hot and cold water supply, providing a durable and leak-resistant solution.
(3)Gas Transmission
Schedule 40 ERW pipes are suitable for gas transmission and distribution, offering the necessary strength and integrity to safely transport natural gas and other gases.
(4)Structural Applications
In construction and infrastructure projects, these pipes are utilized for structural support, piling, and foundation purposes, contributing to the overall stability and strength of buildings and other structures.
3.Manufacturing Process of Schedule 40 ERW Pipe
The manufacturing of Schedule 40 ERW pipes involves the following key steps:
(1)Steel Coil
The process begins with a steel coil that is unwound and passed through a series of forming rolls to shape it into a cylindrical tube.
(2)Electric Resistance Welding
High-frequency electrical currents are applied to the edges of the formed steel strip, creating heat that fuses the edges together to form a continuous weld.
(3)Sizing and Straightening
The welded tube is then passed through sizing and straightening rolls to achieve the desired dimensions and straightness.
(4)Cutting and End Finishing
Finally, the tubes are cut to specific lengths and subjected to end finishing processes such as deburring and beveling to meet the required quality standards.
4.Advantages of Schedule 40 ERW Pipe
(1)Cost-Effective
ERW pipes offer a cost-effective solution for various applications, providing high performance at a competitive price point.
(2)Strength and Durability
These pipes exhibit excellent strength and durability, making them suitable for demanding environments and applications.
(3)Easy Installation
The lightweight nature and uniform dimensions of ERW pipes facilitate easy handling and installation, reducing labor costs and time.
(4)Versatility
Schedule 40 ERW pipes can be used in a wide range of applications, offering versatility and adaptability to diverse piping needs.
In conclusion, Schedule 40 ERW steel pipes are an essential component in numerous industries and applications, offering reliable performance, cost-effectiveness, and versatility. From water distribution and plumbing systems to structural support and gas transmission, these pipes play a crucial role in modern infrastructure and construction. With their robust manufacturing standards and inherent advantages, Schedule 40 ERW pipes continue to be a preferred choice for piping systems across the globe.
