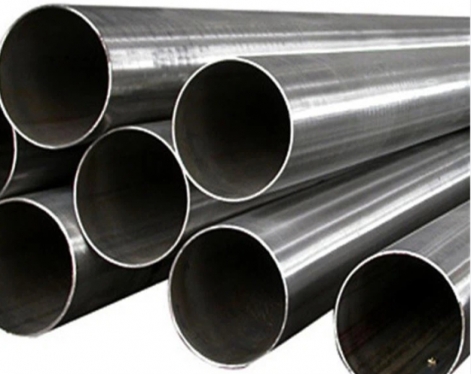

API 5L Grade B seamless steel pipe is a kind of seamless steel pipe widely used in the oil and gas industry. API 5L is a standard developed by the American Petroleum Institute (API) to regulate pipeline steel pipes. The "L" in "5L" stands for pipeline (Line). The standard covers seamless and welded steel pipes, with Grade B being one specific grade of steel. API 5L standards are regularly updated to keep pace with industry developments and technological advances, ensuring the quality and performance of steel pipes in harsh environments such as oil and gas transportation.
Material properties
API 5L Grade B seamless steel pipe is mainly made of low carbon steel, and the carbon content is usually controlled below 0.25%. This design gives it good welding performance and can be easily connected during pipeline construction. At the same time, the appropriate addition of alloy elements such as manganese and silicon significantly enhances the strength and toughness of the steel. Manganese can refine the steel grains, improve strength and hardenability; silicon can enhance the hardness and elasticity of steel. The synergistic effect of the two lays the foundation for the stable operation of steel pipes under complex working conditions. The seamless production process avoids the weak links caused by welds, ensures the overall uniformity and integrity of the pipe, and is able to withstand higher pressures and complex stresses.
Production process
The production process covers several key links. The first is the billet preparation. After strict screening, the high-quality round steel billets enter the heating process and are heated to the appropriate temperature to soften the steel for subsequent processing. Then, through the perforation process, a perforator is used to perforate the round steel billet into a hollow rough tube to form the prototype of a steel pipe. Then the rough pipe is stretched and rolled, and the rough pipe is rolled with the help of a rolling mill to gradually reach the required pipe diameter and wall thickness. Finally, after sizing, straightening, cutting and other processes, the dimensional accuracy and straightness of the steel pipe meet the standard requirements. Each process undergoes strict quality control to ensure product quality.
API 5L Grade B Seamless Steel Pipe Specifications
Chemical composition of API 5L Grade B seamless steel pipe
Carbon (C): The content is usually controlled within a certain range, generally not exceeding 0.28%. An appropriate amount of carbon helps to ensure the strength of the steel.
Manganese (Mn): The content does not exceed 1.20%. Manganese can improve the strength and toughness of steel and eliminate the harmful effects of sulfur to a certain extent.
Sulfur (S) and phosphorus (P): They are harmful elements and their content is strictly limited. Usually, the sulfur content does not exceed 0.03% and the phosphorus content does not exceed 0.03% to ensure the quality and performance of steel.
Mechanical properties of API 5L Grade B seamless steel pipe
Yield strength: The yield strength is 240MPa, which means that when subjected to pressure, the steel pipe will maintain elastic deformation before reaching this stress value, and begin to produce plastic deformation after exceeding this value.
Tensile strength: The tensile strength is 415MPa, which indicates the stress that the material can withstand during the stretching process and reflects the ability of the steel pipe to resist tensile damage.
Quality inspection: strictly control quality
To ensure product quality, API 5L Grade B seamless steel pipes are subject to a number of rigorous tests. Including chemical composition analysis, using spectrometers and other equipment to accurately determine the content of each element in steel; Mechanical properties tests, such as tensile tests and impact tests, to detect the strength, toughness and other performance indicators of steel pipes; Non-destructive testing, using ultrasonic, X-ray and other technologies to check whether there are defects inside the steel pipe; Surface quality inspection: check whether there are cracks, folds and other defects on the surface of the steel pipe through visual inspection or professional equipment. Each test strictly follows the standards, and only products that pass all tests can be put into use.
Read more: Things to Note when Buying Thick-walled Seamless Steel Pipes
Material properties
API 5L Grade B seamless steel pipe is mainly made of low carbon steel, and the carbon content is usually controlled below 0.25%. This design gives it good welding performance and can be easily connected during pipeline construction. At the same time, the appropriate addition of alloy elements such as manganese and silicon significantly enhances the strength and toughness of the steel. Manganese can refine the steel grains, improve strength and hardenability; silicon can enhance the hardness and elasticity of steel. The synergistic effect of the two lays the foundation for the stable operation of steel pipes under complex working conditions. The seamless production process avoids the weak links caused by welds, ensures the overall uniformity and integrity of the pipe, and is able to withstand higher pressures and complex stresses.
Production process
The production process covers several key links. The first is the billet preparation. After strict screening, the high-quality round steel billets enter the heating process and are heated to the appropriate temperature to soften the steel for subsequent processing. Then, through the perforation process, a perforator is used to perforate the round steel billet into a hollow rough tube to form the prototype of a steel pipe. Then the rough pipe is stretched and rolled, and the rough pipe is rolled with the help of a rolling mill to gradually reach the required pipe diameter and wall thickness. Finally, after sizing, straightening, cutting and other processes, the dimensional accuracy and straightness of the steel pipe meet the standard requirements. Each process undergoes strict quality control to ensure product quality.
API 5L Grade B Seamless Steel Pipe Specifications
| Processing Method | Seamless and Welded |
| Size Range | 1/8"- 48" / DN6 - 1200 |
| Thickness Schedule | SCH 10, SCH 20, SCH 40, STD, XS, SCH 100, SCH 120, SCH 160, XXS |
| Length | 6m or 12 m or Random |
| Standard | ASME B36.10M |
| Surface Treatment | Blasting and Painting , Epoxy Powder FBE, 2PE, 3PE Coating |
| Material Grade | ASTM A106B / A53, API 5L B / X42 / 46 / 52 / 56 / 60 / 65 / 70, A333 GR 6 |
Chemical composition of API 5L Grade B seamless steel pipe
| CHEMICAL | LIMITS | C | Mn | P | S | Cu | Ni | Cr | Mo |
API 5L Gr.B |
MIN | ||||||||
| MAX | 0.28 | 1.20 | 0.03 | 0.03 | 0.5 | 0.5 | 0.5 | 0.15 |
Carbon (C): The content is usually controlled within a certain range, generally not exceeding 0.28%. An appropriate amount of carbon helps to ensure the strength of the steel.
Manganese (Mn): The content does not exceed 1.20%. Manganese can improve the strength and toughness of steel and eliminate the harmful effects of sulfur to a certain extent.
Sulfur (S) and phosphorus (P): They are harmful elements and their content is strictly limited. Usually, the sulfur content does not exceed 0.03% and the phosphorus content does not exceed 0.03% to ensure the quality and performance of steel.
Mechanical properties of API 5L Grade B seamless steel pipe
| MATERIAL | T.S (MPA) | Y.S (MPA) | EL % |
| ASTM API 5LB | 415 min | 240 min | 23min |
Yield strength: The yield strength is 240MPa, which means that when subjected to pressure, the steel pipe will maintain elastic deformation before reaching this stress value, and begin to produce plastic deformation after exceeding this value.
Tensile strength: The tensile strength is 415MPa, which indicates the stress that the material can withstand during the stretching process and reflects the ability of the steel pipe to resist tensile damage.
Quality inspection: strictly control quality
To ensure product quality, API 5L Grade B seamless steel pipes are subject to a number of rigorous tests. Including chemical composition analysis, using spectrometers and other equipment to accurately determine the content of each element in steel; Mechanical properties tests, such as tensile tests and impact tests, to detect the strength, toughness and other performance indicators of steel pipes; Non-destructive testing, using ultrasonic, X-ray and other technologies to check whether there are defects inside the steel pipe; Surface quality inspection: check whether there are cracks, folds and other defects on the surface of the steel pipe through visual inspection or professional equipment. Each test strictly follows the standards, and only products that pass all tests can be put into use.
